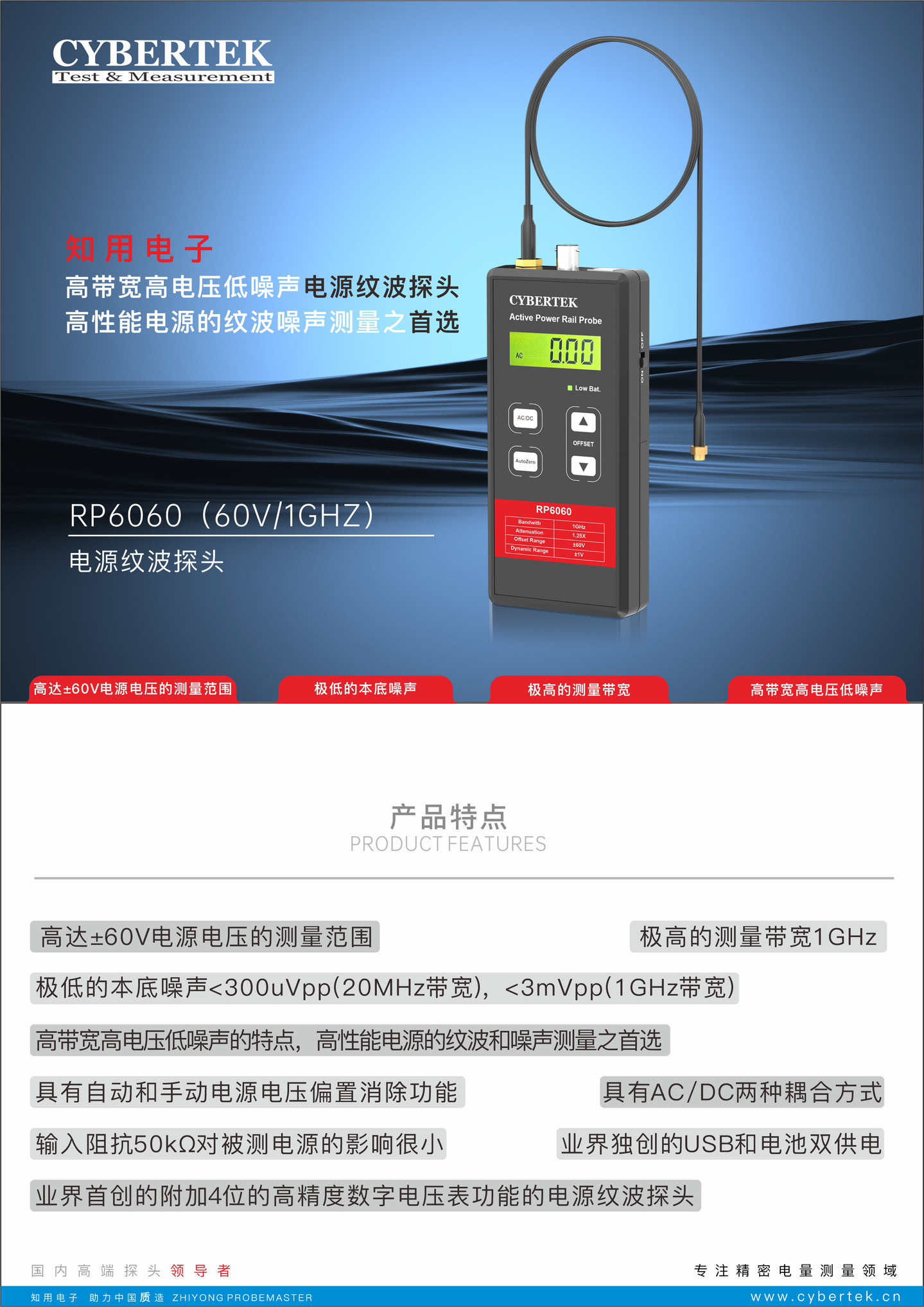

I. Product Overview
The RP6060 probe offers a low-noise, wide-bias range solution for measuring ripple on DC power rails, with a DC power rail range of -60 to +60 VDC. It provides the industry-leading low noise and large bias range required, capable of measuring AC ripple from 200μVp-p to 800 mVp-p below 1GHz. This probe is mainly used to measure the low source impedance of the distribution plane. Therefore, it is not recommended to measure the equipment when the source impedance is greater than 1 Ω, as this may cause waveform distortion.
Product features
A measurement range of up to ±60V power supply voltage
2. Extremely low background noise <300 Uvpp (20 MHZ bandwidth), <3mVpp(1GHz bandwidth)
3. Extremely high measurement bandwidth of 1GHz.
4. With the characteristics of high bandwidth, high voltage and low noise, it is the first choice for ripple and noise measurement of high-performance power supplies
5. It has both automatic and manual power supply voltage bias elimination functions
6. It has two coupling modes: AC and DC
7. The input impedance of 50kΩ has a very small impact on the power supply under test
8. The industry's first power ripple probe with an additional 4-digit high-precision digital voltmeter function and the industry's unique dual power supply of USB and battery.

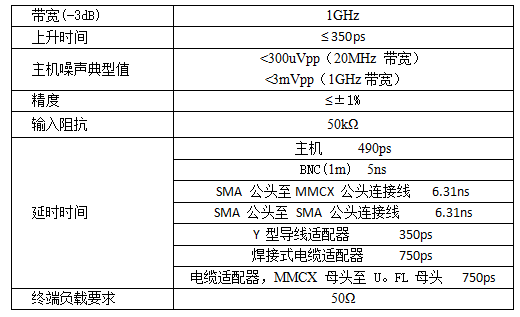

Ii. Electrical Specifications of the Product
